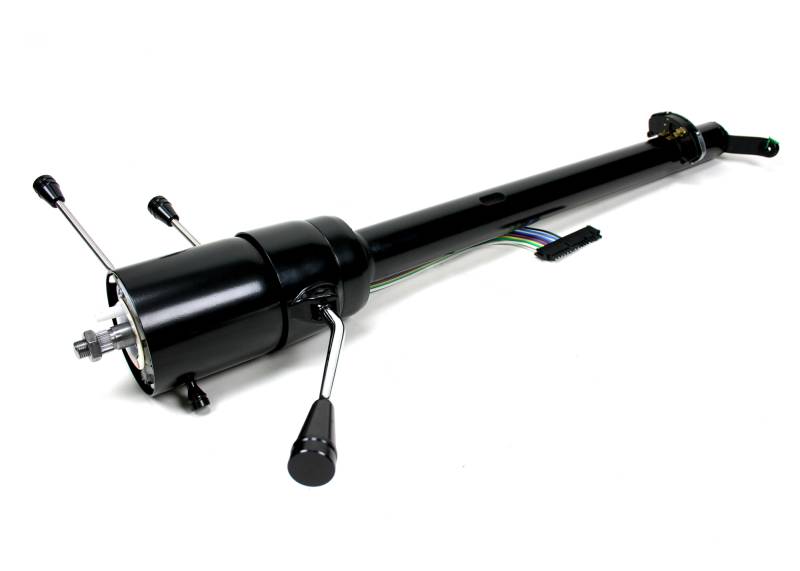

1967-72 Chevy Truck Straight Column Shift - Black Powder Coated

1160657051
Retrofit 1967-72 Straight Column Shift Steering Column - Black Powder Coated
Limited Supply: only 1 remaining
Pricing: $1,138.00
Qty:

Description

The 1967-72 Chevy Truck column installs in the same location as the old and includes everything you'll need for flawless installation. All that's required is an ididit installation kit. We offer both a standard and rack column for the 1967-72 Chevy Truck. The standard column will bolt right to your stock box (with a u-joint). The rack version is made shorter to lessen the angle of the u-joints. 1967-72 columns all install simply by using the original under dash mount and floor mount. All of our Chevy truck column shift columns come complete with a neutral safety switch (shift indicator not included). The shift pattern on the column allows you to use either a 3 or 4-speed automatic transmission. A shift linkage (new or original) is required for installation and will attach to the lower shift arm provided on the column. Using an adaptor, add an aftermarket wheel and the gripping surface will be in the same location as the stock wheel.

Installation Kits

Deluxe Kit
This kit includes all the necessary parts you will need to install the column to the gearbox. All you need to know is the diameter of the gearbox input shaft and the number of splines.

Econo Kit
We had the builder on a budget in mind when we designed this kit. The original joint and intermediate shaft are used. For the 1960-66 column, the shaft will need to be cut and modified to match the 3/4" DD coupler. The factory joint can be used for the 1967-72 column. Due to age, the original rag joint may be worn so please double check to make sure it is in good condition.ididit, inc. always recommends replacing the rag joint.

Original Harness
For vehicles with an original factory harness, a 4-way flasher kit is included in your installation kit.  This 4-way flasher kit will not only add safety to your vehicle, but will also convert your original wiring harness to the 3 7/8" plug found on your ididit column. A wiring harness adaptor is included with the 1967-72 Chevy Truck column.

Aftermarket Harness
Many aftermarket wiring companies offer replacement harnesses that incorporate a 4-way flasher unit as well as the flat 3 7/8" plug.  If you are using one of these harnesses, a 4-way flasher kit is not necessary.



INSTALLATION KITS (all the required components needed for flawless installation)

1955-59 3000315249
Includes 3/4"DD x 1"DD Coupler
This coupler is needed if you are using a stock box. If using a rack & pinion or later model steering box, please call ididit for further information.

1955-59 Turn Signal Wiring
If your Chevy Truck was originally equipped with turn signals, you will need one of the following year specific wiring harness adaptors.
1955 3100035775
1956 3100035780
1957-59 3100035785
If your truck did NOT come with factory turn signals, use this plug to connect your wiring.
Female End Plug 3106050010

1960-62 3001001001
Econo Kit - Original Harness
Includes Coupler & Flasher Kit

1960-62 3006001001
Deluxe Kit - Original Harness
Manual Gearbox: 3/4"-30
Includes Coupler, Shaft, Rag Joint & Flasher Kit

1960-62 3006002001
Deluxe Kit - Original Harness
Manual Gearbox: 3/4"-36
Includes Coupler, Shaft, Rag Joint & Flasher Kit

1960-66 3000313449
Econo Kit - Aftermarket Harness
Includes 3/4"-36 x 3/4"DD Coupler

1960-66 3006001000
Deluxe Kit - Aftermarket Harness
Manual/Power Gearbox: 3/4"-30
Includes Coupler, Shaft & Rag Joint

1960-66 3006002000
Deluxe Kit - Aftermarket Harness
Manual Gearbox: 3/4"-36
Includes Coupler, Shaft & Rag Joint

1963-66 3001001002
Econo Kit - Original Harness
Includes Coupler & Flasher Kit

1963-66 3006001002
Deluxe Kit - Original Harness
Manual Gearbox: 3/4"-30
Includes Coupler, Shaft, Rag Joint & Flasher Kit

1963-66 3006002002
Deluxe Kit - Original Harness
Manual Gearbox: 3/4"-36
Includes Coupler, Shaft, Rag Joint & Flasher Kit

1967-72 3007001000
Deluxe Kit - Aftermarket Harness
Manual/Power Gearbox: 3/4"-30
Includes U-Joint, Shaft & Rag Joint

1967-72 3007002000
Deluxe Kit - Aftermarket Harness
Manual Gearbox: 3/4"-36
Includes U-Joint, Shaft & Rag Joint

1967-72 3007003000
Deluxe Kit - Aftermarket Harness
Power Gearbox: 13/16"-36
Includes U-Joint, Shaft & Rag Joint

1973-76 3010006000
Deluxe Kit - Aftermarket Harness
Power Gearbox: 13/16"-36
Includes U-Joint, Telescoping Shaft & Vibration Joint

1977-78 3010007000
Deluxe Kit - Aftermarket Harness
Manual/Power Assisted Gearbox: 3/4"-30
Includes U-Joint, Telescoping Shaft & Vibration Joint

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 17.9 lbs.
  • W13.0000” x H6.0000” x L44.0000”
