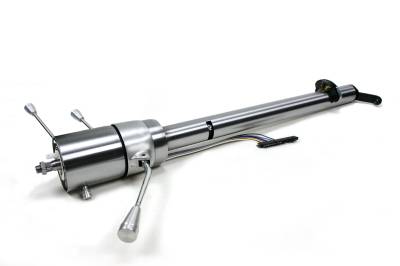

1955-1956 Chevy Tilt Column Shift Steering Column - Chrome

SKU: 1140550020

Retrofit 1955-1956 Chevy Tri-Five Tilt Column Shift Steering Column - Chrome

Limited Supply: only 7 remaining

Pricing: $1,259.00

Description
Special Notes
Installation Kits
Details
Shipping

Description

Add the convenience of a column shift to your classic! Available with 8-position tilt or space-saving straight. This column comes complete with a neutral safety switch, as well as everything you'll need to use your original dash indicator (aftermarket shift indicator sold separately). The shift pattern on the column allows you to use either a 3 or 4-speed automatic transmission (except early Powerglides, as they have a reverse pattern transmission). A solid shift linkage (new or original) is required for installation and will attach to the lower shift arm provided on the column.

Special Notes

A Cable Shift Linkage Kit is NOT recommended for use with Tri-Fives

Installation Kits

Kit Type	605 BOX ORIGINAL HARNESS	MANUAL BOX ORIGINAL HARNESS	NO BOX SPECIFIED ORIGINAL HARNESS
Contents	Rag Joint/Floor Mount/Flasher Kit	Coupler/Floor Mount/Flasher Kit	Floor Mount/Flasher Kit
1955	3005004005	3004001005	3008001005
1956	3005004006	3004001006	3008001006
1957	3005004007	3004001007	3008001007

Kit Type	605 BOX AFTERMARKET HARNESS	MANUAL BOX AFTERMARKET HARNESS	NO BOX SPECIFIED AFTERMARKET HARNESS
Contents	Rag Joint/Floor Mount	Coupler/Floor Mount	Floor Mount
1955-1957	3005004000	3004001000	2401400010

1955-57 Chevy Tri-Five - Column Shift - Installation Kit

Retrofit Series

Original Harness
For vehicles with an original factory harness, a 4-way flasher kit is included in your installation kit. This 4-way flasher kit will not only add safety to your vehicle, but will also convert your original wiring harness to the 3 7/8" plug found on your ididit column.

Aftermarket Harness
Many aftermarket wiring companies offer replacement harnesses that incorporate a 4-way flasher unit as well as the flat 3 7/8" plug. If you are using one of these harnesses, a 4-way flasher kit is not necessary.

Floor Mount
A new floor mount is required for ALL installations. The original will not fit the ididit steering column.

Power Box
A rag joint is required if using a power box. The rag joint has 2 different functions. One, as a coupler between the lower shaft of the column and the input shaft of the gearbox. Two, as a vibration reducer which helps isolate pulsations commonly felt from the power steering pump.

Manual Box
If using the original box the shaft will need to be cut and modified and a coupler will need to be installed.

No Box Specified
If you are unsure whether you are using a box or a rack, give us a call and we can help determine what you have and what application will work the best.
