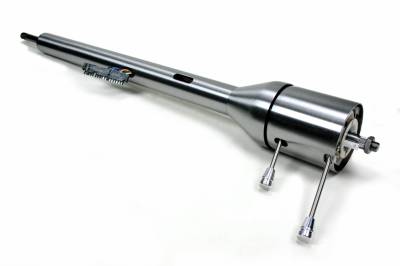

1961-1962 Impala Tilt Floor Shift Steering Column - Paintable Steel

SKU: 1120620010

Retrofit 1961-1962 Impala Tilt Floor Shift Steering Column - Paintable Steel

Not Available

Pricing: $587.00

Description
Installation Kits
Details
Shipping

Description

This retrofit column is designed to fit your 1961-62 Impala and does NOT require modification to your original vehicle to install. Simply remove your old column, saving your original under dash mount and floor mount. Use an ididit installation kit to install your new steering column in place of the old. This column will match the dash perfectly using the original bezel. Add an aftermarket wheel (using an adaptor) or original wheel but keep in mind that an aftermarket wheel may push the wheel closer to the driver and the original wheel will increase the overall length of the column towards the driver.

Installation Kits

Kit Type	DELUXE KIT - ORIGINAL HARNESS			DELUXE KIT - AFTERMARKET HARNESS
Contents	U-Joint/Shaft/Rag Joint/Flasher Kit			U-Joint/Shaft/Rag Joint
Gearbox Input Shaft	Manual 3/4"-30	Manual 3/4"-36	Power 13/16"-36	Manual 3/4"-30	Manual 3/4"-36	Power 13/16"-36
1958	3007001007	3007002007	N/A	3007001000	3007002000	N/A
1959-62	3007001001	3007002001	N/A	3007001000	3007002000	N/A
1963-64*	3007001002	3007002002	*	3007001000	3007002000	*

Kit Type	DELUXE KIT - ORIGINAL HARNESS			DELUXE KIT - AFTERMARKET HARNESS
Contents	Rag Joint/Flasher Kit			Rag Joint
Gearbox Input Shaft	Manual 3/4"-30	Manual 3/4"-36	Power 13/16"-36	Manual 3/4"-30	Manual 3/4"-36	Power 13/16"-36
1965-66**	3003001002	3003002002	3003003002	3000053431	3000053434	3000053440
1967**	See AFTERMARKET HARNESS part numbers			3000053431	3000053434	3000053440

Kit Type	ECONO KIT - ORIGINAL HARNESS	ECONO KIT - AFTERMARKET HARNESS
Contents	U-Joint/Flasher Kit	U-Joint Only
1958	3002001007	3000013434
1959-62	3002001001	3000013434
1963-64	3002001002	3000013434

* Power assisted manual gear boxes were used. Please refer to manual shaft sizes.
** Rear Steer Application (gearbox is near the back of engine)

1958-67 Impala - Installation Kits

Retrofit Series

Deluxe Kit

This kit includes all the necessary parts you will need to install the column to the gearbox. All you need to know is the diameter of the gearbox input shaft and the number of splines.

Econo Kit

We had the builder on a budget in mind when we designed this kit. The original joint and intermediate shaft are used. The shaft will need to be cut and modified to match the 3/4" DD u-joint. Due to age, the original rag joint may be worn so please double check to make sure it is in good condition. ididit, inc. always recommends replacing the rag joint.

Original Harness

For vehicles with an original factory harness, a 4-way flasher kit is included in your installation kit. This 4-way flasher kit will not only add safety to your vehicle, but will also convert your original wiring harness to the 3 7/8" plug found on your ididit column.

Aftermarket Harness

Many aftermarket wiring companies offer replacement harnesses that incorporate a 4-way flasher unit as well as the flat 3 7/8" plug. If you are using one of these harnesses, a 4-way flasher kit is not necessary.
